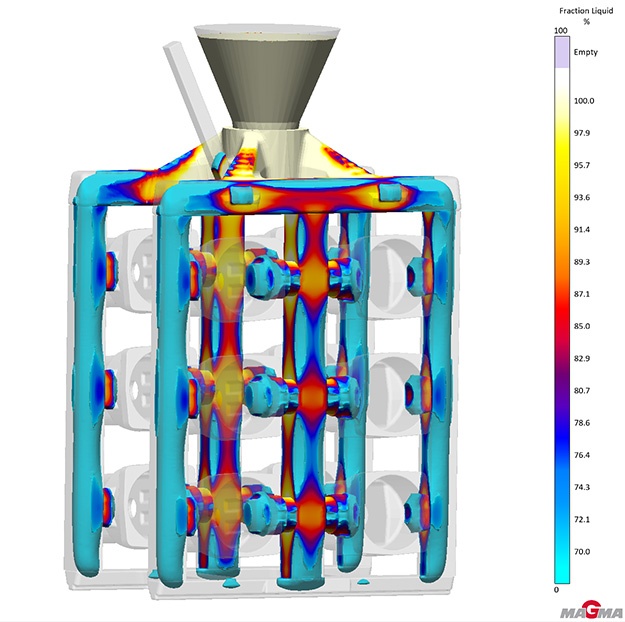

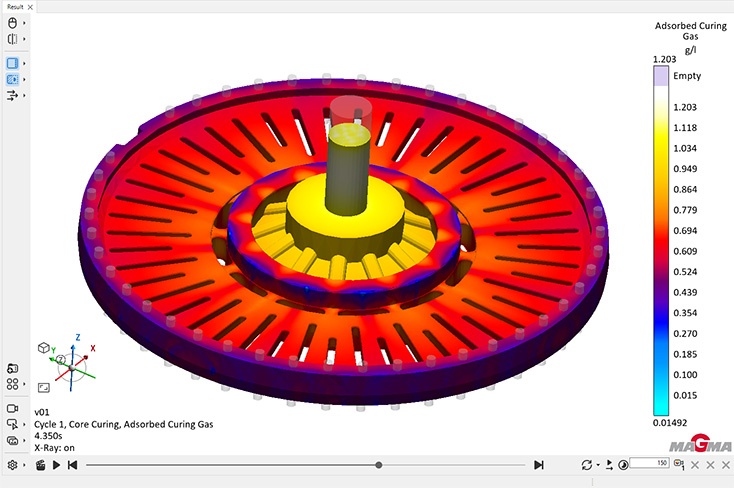

With the new continuous color scale and a new X-ray display, MAGMASOFT® 6.0 enables an even more realistic and precise evaluation of simulation results (Fig. 2 and 3). In addition, the values of the scale can be adjusted either directly or interactively with the mouse wheel.
The overall performance in the visualization of results has been significantly improved. Users benefit from up to 10 times faster and smoother result evaluation. In addition, picking or dragging over a 3D result displays individual selected result values ('Picked Value').
Performance in the 'Multi View' display of different results in parallel has been improved for an even more targeted evaluation. Users can synchronize settings and views as well as picked values of different results more intuitively and reliably, even across project versions.
Creating images and animations has also been simplified. MAGMASOFT® 6.0 provides additional support for users with an optimized workflow: images and movies are generated fast and intuitively for communicating results immediately.
